House plan · 3 bed · 180 m² · G+1

Duplex plan: 3 bedrooms, 180 m², 10,80 × 8,60 m footprint

A complete, dimensioned duplex plan — G+1, 180 m² of living area on a 10,80 × 8,60 m footprint: a living room, a kitchen, 3 bedrooms including a master bedroom, 3 bath and shower rooms, a study, a laundry, 3 terraces and balconies. With its 3D view and the quantities of materials it takes to build.

At a glance
Living area
180 m²
Bedrooms
3
Footprint
10,80 × 8,60 m
Levels
2

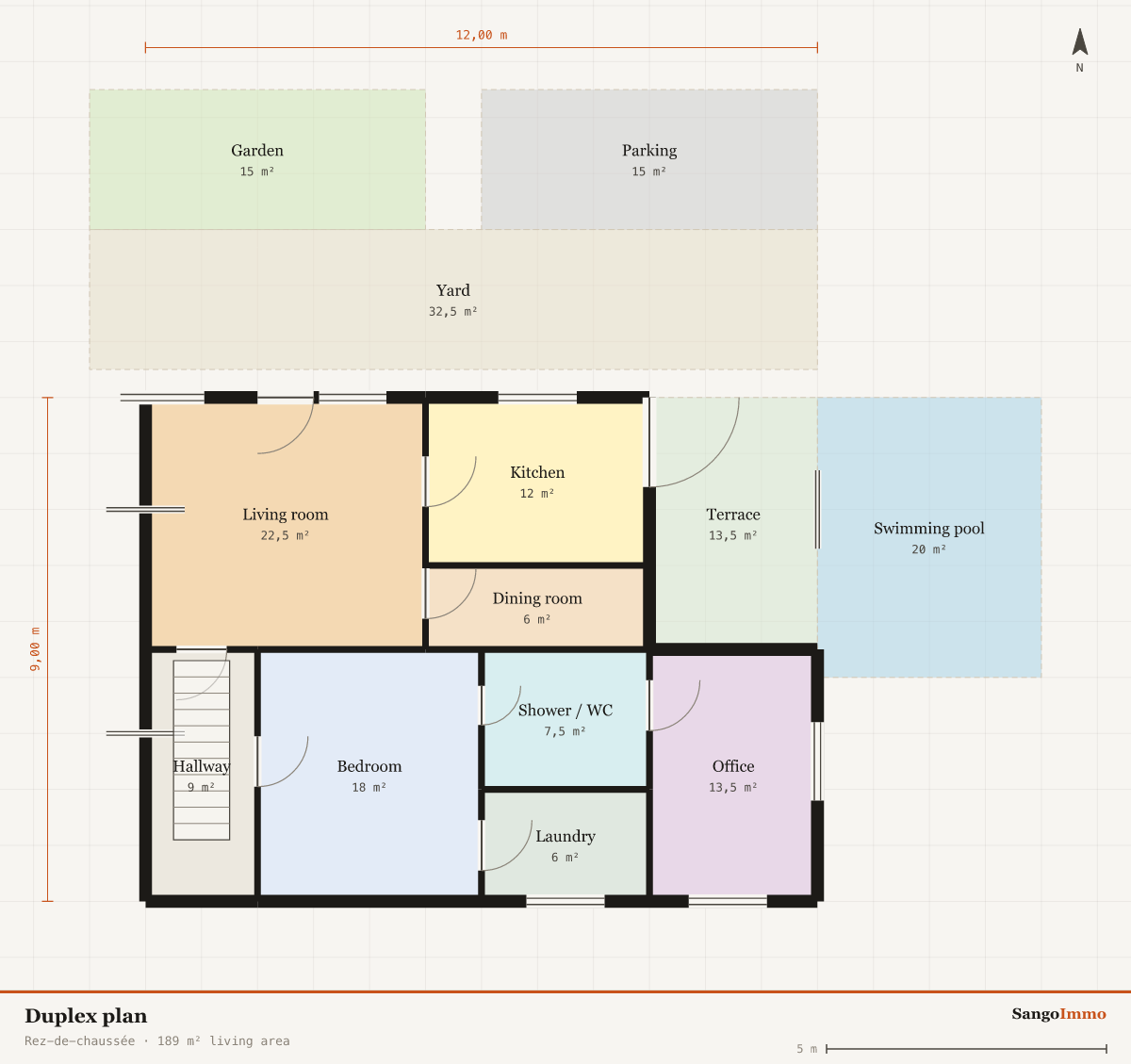

Dimensioned floor plan of the duplex, Ground floor: 3 bedrooms, 180 m² living area, 10,80 by 8,60 m footprint.
Dimensioned plan of the duplex — Ground floor, drawn to scale with real wall thicknesses (200 mm rendered block on the perimeter, 100 mm partitions inside).
Dimensioned floor plan of the duplex, First floor: 3 bedrooms, 180 m² living area, 10,80 by 8,60 m footprint.
Dimensioned plan of the duplex — First floor, drawn to scale with real wall thicknesses (200 mm rendered block on the perimeter, 100 mm partitions inside).

The same house, in 3D

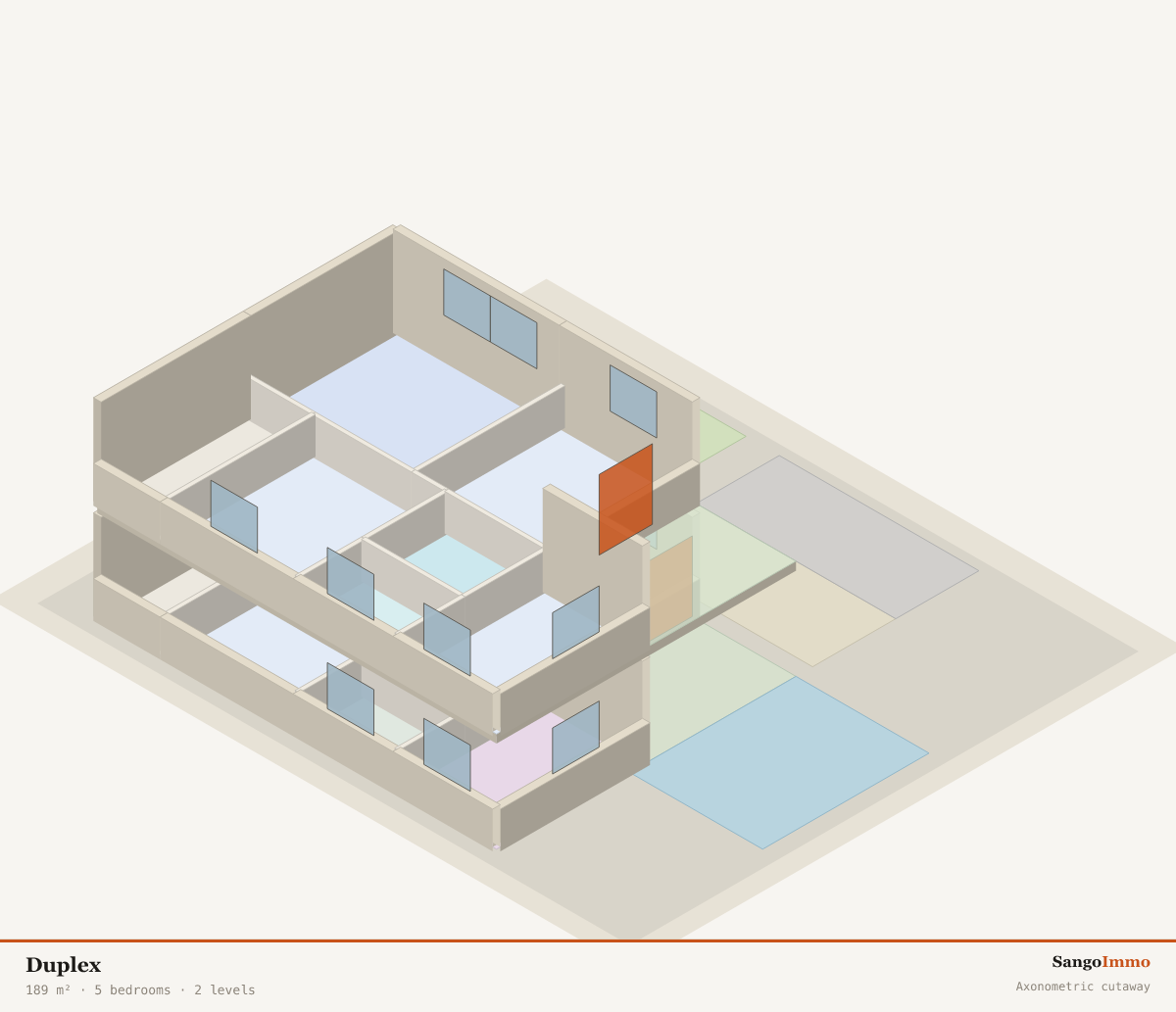

3D view of the duplex: G+1, 3 bedrooms, 180 m² — render of the SangoImmo model, roof and façades as designed.
3D view of the duplex, rendered from the same model as the plan above: what the app shows when you switch to 3D.

The drawing and the 3D view are two readings of one model. Open it and you can walk around the house, check the roof and the heights, then go back to the plan and move a wall: the 3D view and the quantities follow.

Room schedule for this plan

Duplex — room schedule
RoomLevelDimensionsArea
Living roomGround floor5,60 × 5,00 m28 m²
KitchenGround floor3,20 × 5,00 m16 m²
EntryGround floor4,40 × 3,60 m15,8 m²
OfficeGround floor3,20 × 3,60 m11,5 m²
LaundryGround floor2,00 × 5,00 m10 m²
Terrace (outdoor)Ground floor4,40 × 1,80 m7,9 m²
Terrace (outdoor)Ground floor1,60 × 3,60 m5,8 m²
Shower / WCGround floor1,60 × 1,80 m2,9 m²
UtilityGround floor1,60 × 1,80 m2,9 m²
Master bedroomFirst floor4,40 × 5,00 m22 m²
BedroomFirst floor4,40 × 5,00 m22 m²
HallwayFirst floor4,40 × 3,60 m15,8 m²
BedroomFirst floor3,20 × 3,60 m11,5 m²
Balcony (outdoor)First floor4,40 × 1,80 m7,9 m²
BathroomFirst floor3,20 × 1,80 m5,8 m²
LaundryFirst floor3,20 × 1,80 m5,8 m²
BathroomFirst floor2,00 × 2,60 m5,2 m²
UtilityFirst floor2,00 × 2,40 m4,8 m²
Total living area180 m²
Outdoor (terrace, yard, garden)21,6 m²

Areas are measured inside the walls from the drawing above, room by room. The 28 doors and windows are positioned on the plan and are what the takeoff deducts from the masonry.

Dimensions and footprint

The building measures 10,80 m by 8,60 m, so it needs a plot of at least 15 × 13 m to keep a 2 m margin on every side — check the setbacks that apply where you build. Perimeter walls are drawn 20 cm thick, internal partitions 10 cm. Ceiling height is 2,70 m.

The quantities of this plan

These are the quantities the SangoImmo engine takes off this exact model — openings deducted from the walls, the roof counted at its real sloping area (120,31 m² of covering). They are the same wherever the house is built.

Duplex — main quantities
Work itemQuantity
Foundations
Strip footing (reinforced)3,88 m³
Foundation block 20cm31,04 m²
Bottom tie beam (RC)38,8 lm
Compacted laterite fill13,07 m³
Walls and structure
Hollow block 20 cm2 319 units
Hollow block 15 cm1 769 units
Cement render (both faces)621,23 m²
Cement CEM II (50 kg bag)168 bags
River sand8,17 m³
Crushed gravel 5/156,54 m³
RC post 20×209,6 lm
RC beam 20×4013,3 lm
Floors
Concrete slab 12 cm + mesh92,88 m²
RC slab between floors100,8 m²
Smooth cement screed180 m²
Concrete stair tread + finish15 units
Roof
Treated structural timber4,87 m³
Galvanized corrugated sheet 30/100129,93 m²
Aluminum half-round gutter42 lm

Structural shell only: foundations, walls, floors and roof. Joinery, plumbing, electrics and finishes are counted in the app, where the full takeoff runs to every line. For a single wall, slab or roof, use the quantity calculators.

What does this plan cost to build?

It depends on where you build. A bag of cement, a day of labour and the taxes on both do not cost the same from one region to the next, and no single figure printed here would be true for you. What does not change is the list above: the quantities.

So open this plan in the app and price it yourself: enter your own local prices, your labour rates and your taxes, and the quote is built from these quantities — yours, for your region, and recalculated every time you change the plan.

Open this plan in the app — free

Frequently asked questions

What floor area does a 3-bedroom house need?
This 3-bedroom plan uses 180 m² of living area (G+1) on a 10,80 by 8,60 m footprint, with 3 bath/shower rooms. It is one worked example, not a minimum: open it and resize the rooms to see what your own programme needs.
What plot size do I need for this plan?
The building itself is 10,80 × 8,60 m, so plan for a plot of at least 15 × 13 m to keep a 2 m margin on all sides — more if you want a yard or parking, and subject to the setbacks that apply where you build.
How many blocks does this 180 m² house need?
4 088 blocks for the walls of this model, doors and windows deducted, and 120,31 m² of roof covering. The count comes from the plan, so it changes with your own wall lengths and openings.
How much does this plan cost to build?
It depends on where you build: materials, labour and taxes differ from one region to the next, so no price is published here. Open the plan in the app, enter your own local prices, and the quote is computed from the quantities of this model.
Can I see this house in 3D and edit it?
Yes. The plan is a SangoImmo model: open it in the free app, switch to the 3D view to walk around the house, then move walls, resize rooms or add a level. The 3D view and the quantities recalculate as you draw.
