House plan · 4 bed · 235 m² · G+1

4-bedroom house plan: 235 m², 12,60 × 9,60 m footprint

A complete, dimensioned 4-bedroom house plan — G+1, 235,5 m² of living area on a 12,60 × 9,60 m footprint: a living room, a dining room, a kitchen, 4 bedrooms including a master bedroom, 4 bath and shower rooms, a study, a laundry, a garage, 5 terraces and balconies. With its 3D view and the quantities of materials it takes to build.

At a glance
Living area
235,5 m²
Bedrooms
4
Footprint
12,60 × 9,60 m
Levels
2

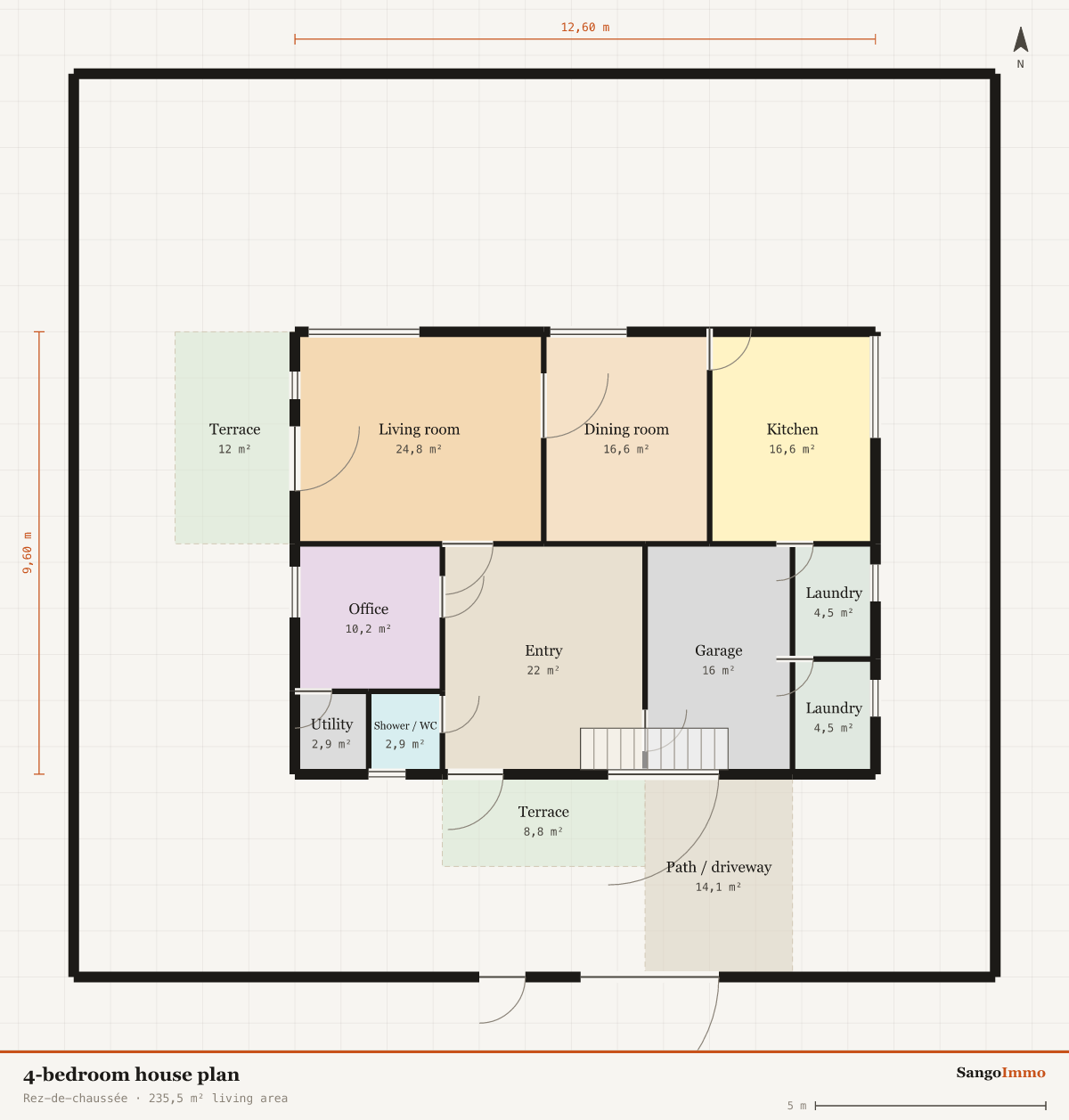

Dimensioned floor plan of the 4-bedroom house, Ground floor: 4 bedrooms, 235,5 m² living area, 12,60 by 9,60 m footprint.
Dimensioned plan of the 4-bedroom house — Ground floor, drawn to scale with real wall thicknesses (200 mm rendered block on the perimeter, 100 mm partitions inside).

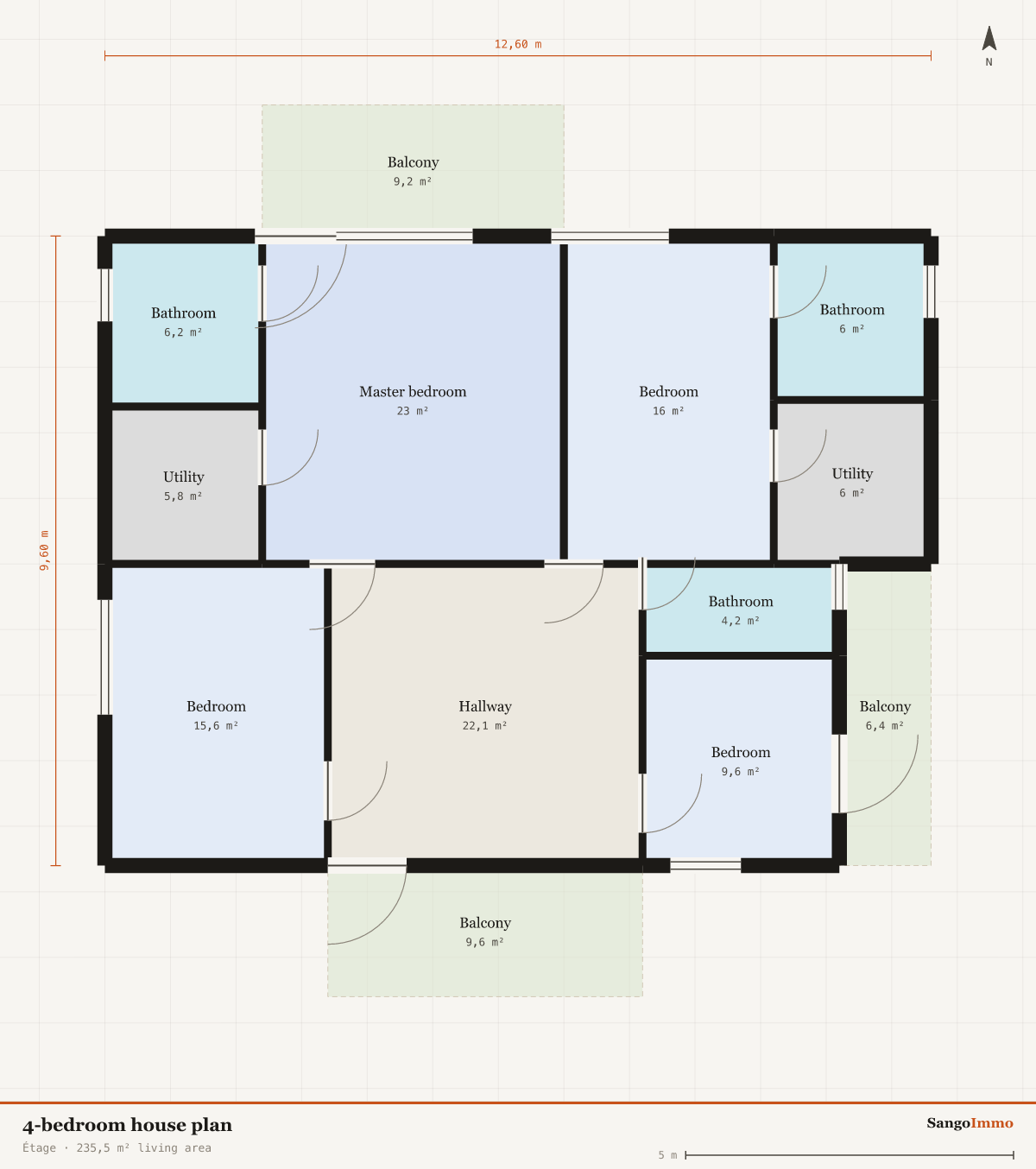

Dimensioned floor plan of the 4-bedroom house, First floor: 4 bedrooms, 235,5 m² living area, 12,60 by 9,60 m footprint.
Dimensioned plan of the 4-bedroom house — First floor, drawn to scale with real wall thicknesses (200 mm rendered block on the perimeter, 100 mm partitions inside).

The same house, in 3D

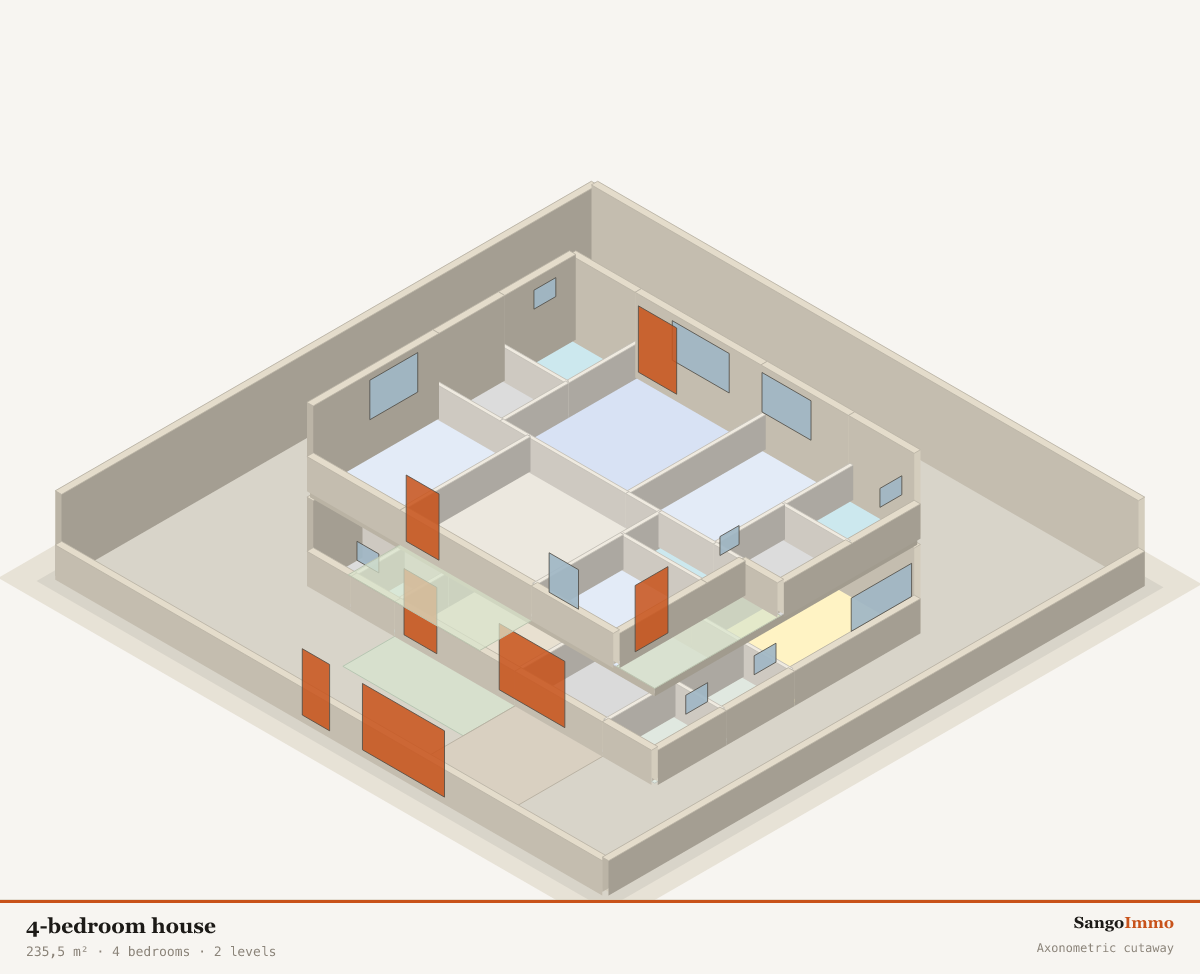

3D view of the 4-bedroom house: G+1, 4 bedrooms, 235 m² — render of the SangoImmo model, roof and façades as designed.
3D view of the 4-bedroom house, rendered from the same model as the plan above: what the app shows when you switch to 3D.

The drawing and the 3D view are two readings of one model. Open it and you can walk around the house, check the roof and the heights, then go back to the plan and move a wall: the 3D view and the quantities follow.

Room schedule for this plan

4-bedroom house — room schedule
RoomLevelDimensionsArea
Living roomGround floor5,40 × 4,60 m24,8 m²
EntryGround floor4,40 × 5,00 m22 m²
Dining roomGround floor3,60 × 4,60 m16,6 m²
KitchenGround floor3,60 × 4,60 m16,6 m²
GarageGround floor3,20 × 5,00 m16 m²
Path / driveway (outdoor)Ground floor3,20 × 4,40 m14,1 m²
Terrace (outdoor)Ground floor2,60 × 4,60 m12 m²
OfficeGround floor3,20 × 3,20 m10,2 m²
Terrace (outdoor)Ground floor4,40 × 2,00 m8,8 m²
LaundryGround floor1,80 × 2,50 m4,5 m²
LaundryGround floor1,80 × 2,50 m4,5 m²
UtilityGround floor1,60 × 1,80 m2,9 m²
Shower / WCGround floor1,60 × 1,80 m2,9 m²
Master bedroomFirst floor4,60 × 5,00 m23 m²
HallwayFirst floor4,80 × 4,60 m22,1 m²
BedroomFirst floor3,20 × 5,00 m16 m²
BedroomFirst floor3,40 × 4,60 m15,6 m²
BedroomFirst floor3,00 × 3,20 m9,6 m²
Balcony (outdoor)First floor4,80 × 2,00 m9,6 m²
Balcony (outdoor)First floor4,60 × 2,00 m9,2 m²
Balcony (outdoor)First floor1,40 × 4,60 m6,4 m²
BathroomFirst floor2,40 × 2,60 m6,2 m²
BathroomFirst floor2,40 × 2,50 m6 m²
UtilityFirst floor2,40 × 2,50 m6 m²
UtilityFirst floor2,40 × 2,40 m5,8 m²
BathroomFirst floor3,00 × 1,40 m4,2 m²
Total living area235,5 m²
Outdoor (terrace, yard, garden)60,1 m²

Areas are measured inside the walls from the drawing above, room by room. The 41 doors and windows are positioned on the plan and are what the takeoff deducts from the masonry.

Dimensions and footprint

The building measures 12,60 m by 9,60 m, so it needs a plot of at least 17 × 14 m to keep a 2 m margin on every side — check the setbacks that apply where you build. Perimeter walls are drawn 20 cm thick, internal partitions 10 cm. Ceiling height is 2,70 m.

The quantities of this plan

These are the quantities the SangoImmo engine takes off this exact model — openings deducted from the walls, the roof counted at its real sloping area (153,77 m² of covering). They are the same wherever the house is built.

4-bedroom house — main quantities
Work itemQuantity
Foundations
Strip footing (reinforced)7,92 m³
Foundation block 20cm63,36 m²
Bottom tie beam (RC)79,2 lm
Compacted laterite fill18,14 m³
Walls and structure
Hollow block 20 cm4 190 units
Hollow block 15 cm2 505 units
Cement render (both faces)1 017,48 m²
Cement CEM II (50 kg bag)263 bags
River sand13,39 m³
Crushed gravel 5/1510,71 m³
RC post 20×2054,8 lm
RC beam 20×4028 lm
Top tie beam (RC)79,2 lm
Floors
Concrete slab 12 cm + mesh120,96 m²
RC slab between floors146,2 m²
Smooth cement screed235,48 m²
Concrete stair tread + finish15 units
Roof
Treated structural timber5,9 m³
Galvanized corrugated sheet 30/100166,07 m²
Aluminum half-round gutter47,6 lm

Structural shell only: foundations, walls, floors and roof. Joinery, plumbing, electrics and finishes are counted in the app, where the full takeoff runs to every line. For a single wall, slab or roof, use the quantity calculators.

What does this plan cost to build?

It depends on where you build. A bag of cement, a day of labour and the taxes on both do not cost the same from one region to the next, and no single figure printed here would be true for you. What does not change is the list above: the quantities.

So open this plan in the app and price it yourself: enter your own local prices, your labour rates and your taxes, and the quote is built from these quantities — yours, for your region, and recalculated every time you change the plan.

Open this plan in the app — free

Frequently asked questions

What floor area does a 4-bedroom house need?
This 4-bedroom plan uses 235,5 m² of living area (G+1) on a 12,60 by 9,60 m footprint, with 4 bath/shower rooms. It is one worked example, not a minimum: open it and resize the rooms to see what your own programme needs.
What plot size do I need for this plan?
The building itself is 12,60 × 9,60 m, so plan for a plot of at least 17 × 14 m to keep a 2 m margin on all sides — more if you want a yard or parking, and subject to the setbacks that apply where you build.
How many blocks does this 235 m² house need?
6 695 blocks for the walls of this model, doors and windows deducted, and 153,77 m² of roof covering. The count comes from the plan, so it changes with your own wall lengths and openings.
How much does this plan cost to build?
It depends on where you build: materials, labour and taxes differ from one region to the next, so no price is published here. Open the plan in the app, enter your own local prices, and the quote is computed from the quantities of this model.
Can I see this house in 3D and edit it?
Yes. The plan is a SangoImmo model: open it in the free app, switch to the 3D view to walk around the house, then move walls, resize rooms or add a level. The 3D view and the quantities recalculate as you draw.
