courtyard house plan (120 m²)
A complete, dimensioned courtyard house plan: 3 bedrooms, 1 bath/WC, 120 m² of living area over 1 level, on a 14,00 × 10,00 m footprint. Built to standard quality it costs about 40 300 000 FCFA — 336 000 FCFA/m².
Room schedule for this plan
| Room | Level | Dimensions | Area |
|---|---|---|---|
| Living room | — | 7,00 × 4,00 m | 28 m² |
| Garden (outdoor) | — | 7,00 × 3,00 m | 21 m² |
| Parking (outdoor) | — | 7,00 × 3,00 m | 21 m² |
| Terrace (outdoor) | — | 5,00 × 4,00 m | 20 m² |
| Master bedroom | — | 4,50 × 3,50 m | 15,8 m² |
| Bedroom | — | 4,50 × 3,50 m | 15,8 m² |
| Kitchen | — | 3,50 × 4,00 m | 14 m² |
| Dining room | — | 3,50 × 4,00 m | 14 m² |
| Bathroom | — | 4,50 × 2,50 m | 11,3 m² |
| Bedroom | — | 4,50 × 2,50 m | 11,3 m² |
| Hallway | — | 5,00 × 2,00 m | 10 m² |
| Total living area | 120 m² | ||
| Outdoor (terrace, yard, garden) | 62 m² | ||

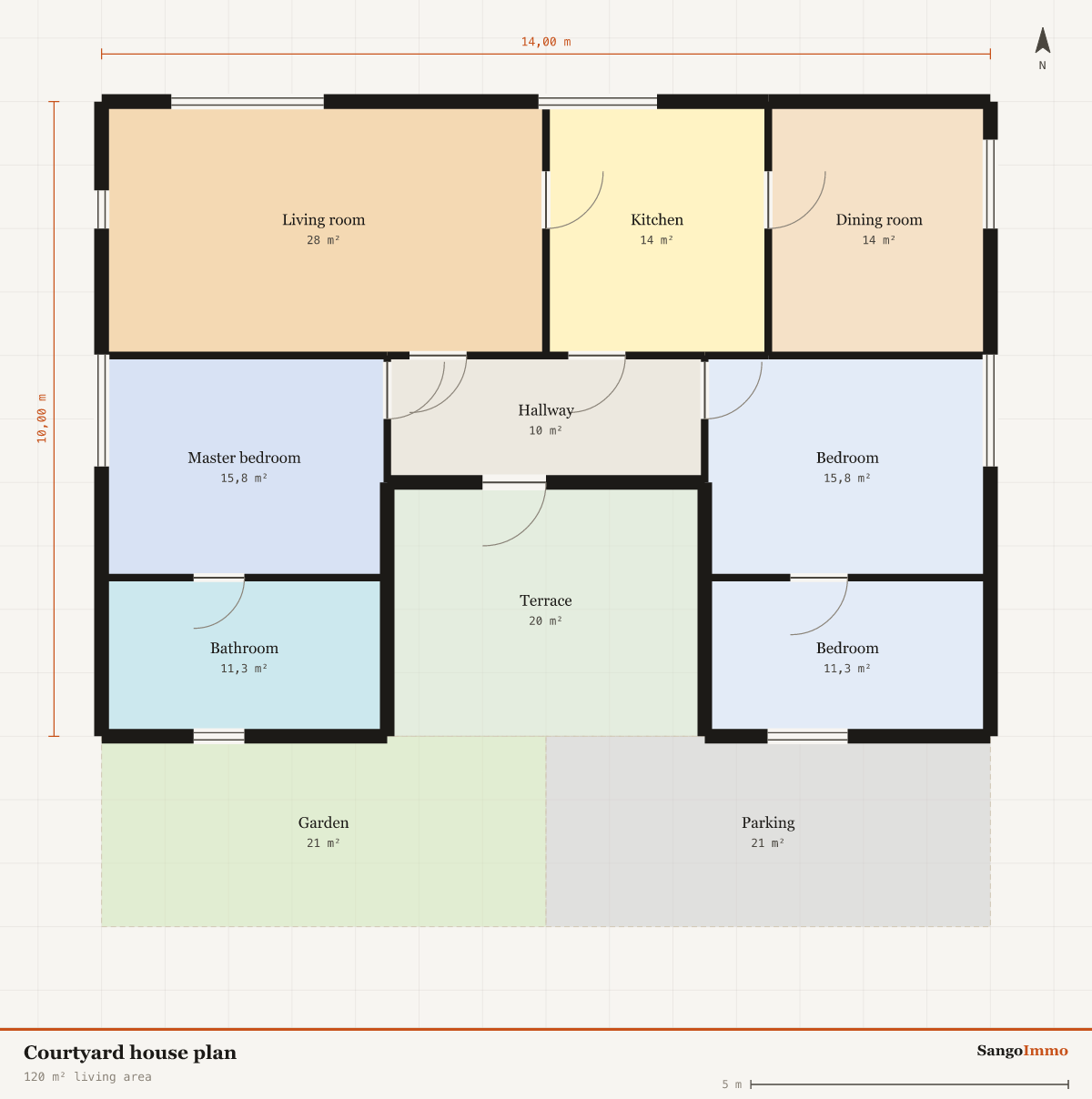

Areas are measured inside the walls from the drawing above, room by room. The 17 doors and windows are positioned on the plan and are what the takeoff deducts from the masonry.
Dimensions and footprint
The building measures 14,00 m by 10,00 m, so it needs a plot at least 18 × 14 m to keep a workable setback on every side. Perimeter walls are 200 mm block with render (0,23 m finished); internal partitions are 100 mm. Ceiling height is 2,70 m.
What does this plan cost to build?
Costed by the SangoImmo engine on the 2026 catalogue (labour ≈ 35%, 19.25% VAT, standard finishes), this plan comes to 40 300 000 FCFA including tax — 336 000 FCFA/m² of living area, excluding land. Materials are 25 700 000 FCFA, labour 8 100 000 FCFA.
The same plan, city by city
| City | Estimated cost (incl. tax) | Per m² |
|---|---|---|
| Douala | 40 300 000 FCFA | 336 000 FCFA/m² |
| Yaoundé | 41 500 000 FCFA | 346 000 FCFA/m² |
| Bafoussam | 39 500 000 FCFA | 329 000 FCFA/m² |
| Bamenda | 42 700 000 FCFA | 356 000 FCFA/m² |
| Buea | 41 900 000 FCFA | 349 000 FCFA/m² |
| Kribi | 41 900 000 FCFA | 349 000 FCFA/m² |
| Garoua | 45 100 000 FCFA | 376 000 FCFA/m² |
| Maroua | 45 500 000 FCFA | 379 000 FCFA/m² |
| Ngaoundéré | 43 900 000 FCFA | 366 000 FCFA/m² |
| Ebolowa | 41 500 000 FCFA | 346 000 FCFA/m² |
City figures apply the published regional factors from the 2026 SangoImmo price index to the same plan. For the full breakdown by house type see the courtyard house cost page.
Change this plan
This plan is a real SangoImmo model, not a picture. Recreate it in the app and you can move a wall, add a bedroom, switch the roof or change the finishes — the quantities and the quote follow the change immediately. Nothing to install, works offline, free to design and cost.
Frequently asked questions
- How big is this courtyard house plan?
- 120 m² of living area over 1 level, on a footprint of 14,00 by 10,00 m. It has 3 bedrooms and 1 bath/WC.
- Can I download and edit this house plan?
- Yes. The plan is a SangoImmo model: open it in the free app, then move walls, resize rooms or add a level. You can export a dimensioned PDF plan, the takeoff and a quote.
- How much does it cost to build this plan in Cameroon?
- About 40 300 000 FCFA including tax at standard quality (336 000 FCFA/m² of living area), excluding land. In Douala it works out near 40 300 000 FCFA; see the city table above.
- What plot size do I need?
- The building itself is 14,00 × 10,00 m, so plan for a plot of at least 18 × 14 m to keep a usable setback on all sides — more if you want a yard or parking.
Sources and references
- Figures: SangoImmo costing engine, 2026 materials catalogue — see the full methodology. Open data, CC BY 4.0.
- National statistics and price indices for Cameroon: Institut National de la Statistique du Cameroun (INS).
- Housing policy and building permits: Ministère de l'Habitat et du Développement Urbain (MINHDU).
- Compliance rules checked by the app: SANS 10400 (building regulations), French NF DTU codes of practice, CEMAC-region practice.
