House plan · 1 bed · 58 m² · single-storey

1-bedroom house plan: 58 m², 8,40 × 6,90 m footprint

A complete, dimensioned 1-bedroom house plan — single-storey, 58 m² of living area on a 8,40 × 6,90 m footprint: a living room, a kitchen, one bedroom, one bathroom, a laundry, a terrace. With its 3D view and the quantities of materials it takes to build.

At a glance
Living area
58 m²
Bedrooms
1
Footprint
8,40 × 6,90 m
Levels
1

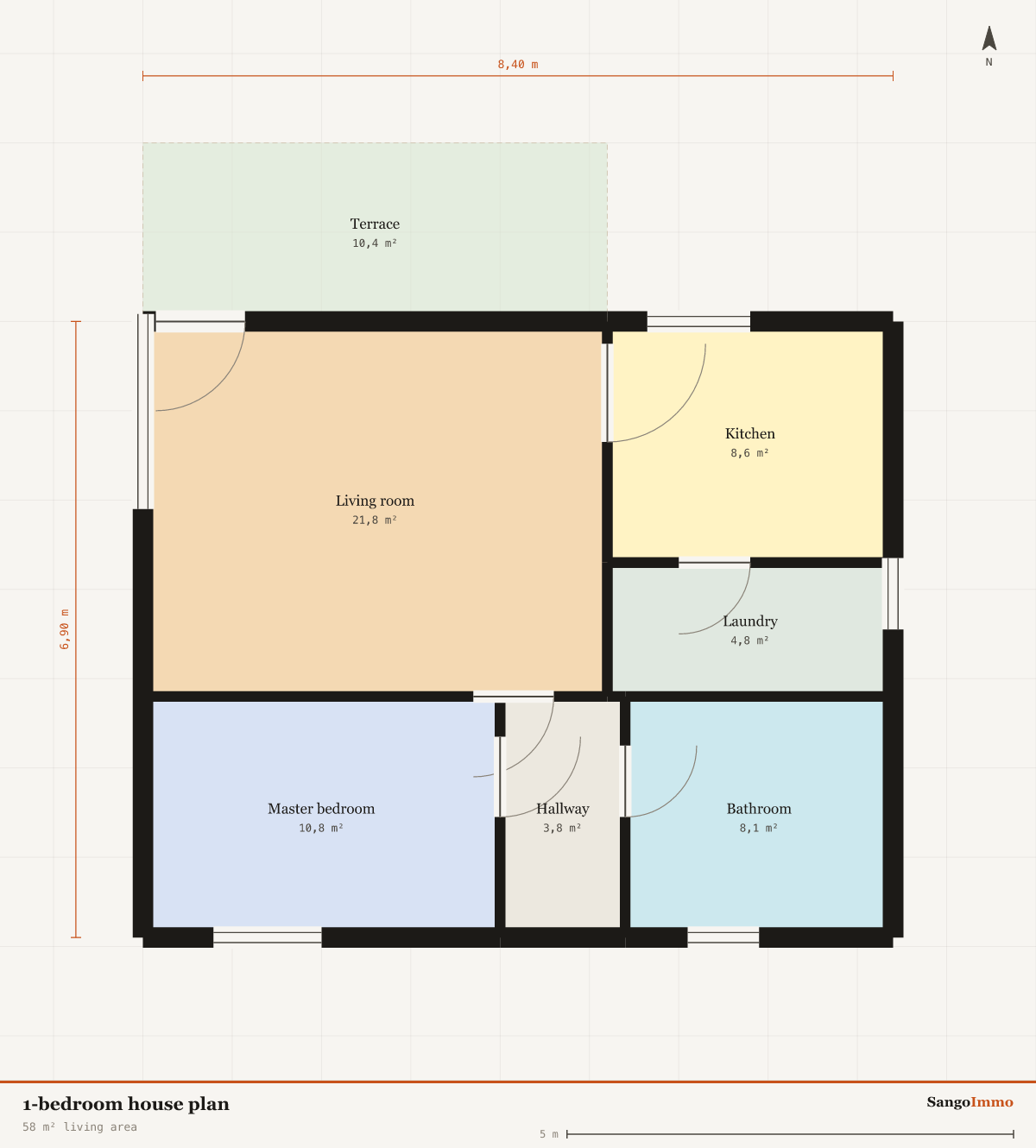

Dimensioned floor plan of the 1-bedroom house: 1 bedroom, 58 m² living area, 8,40 by 6,90 m footprint.
Dimensioned plan of the 1-bedroom house, drawn to scale with real wall thicknesses (200 mm rendered block on the perimeter, 100 mm partitions inside).

The same house, in 3D

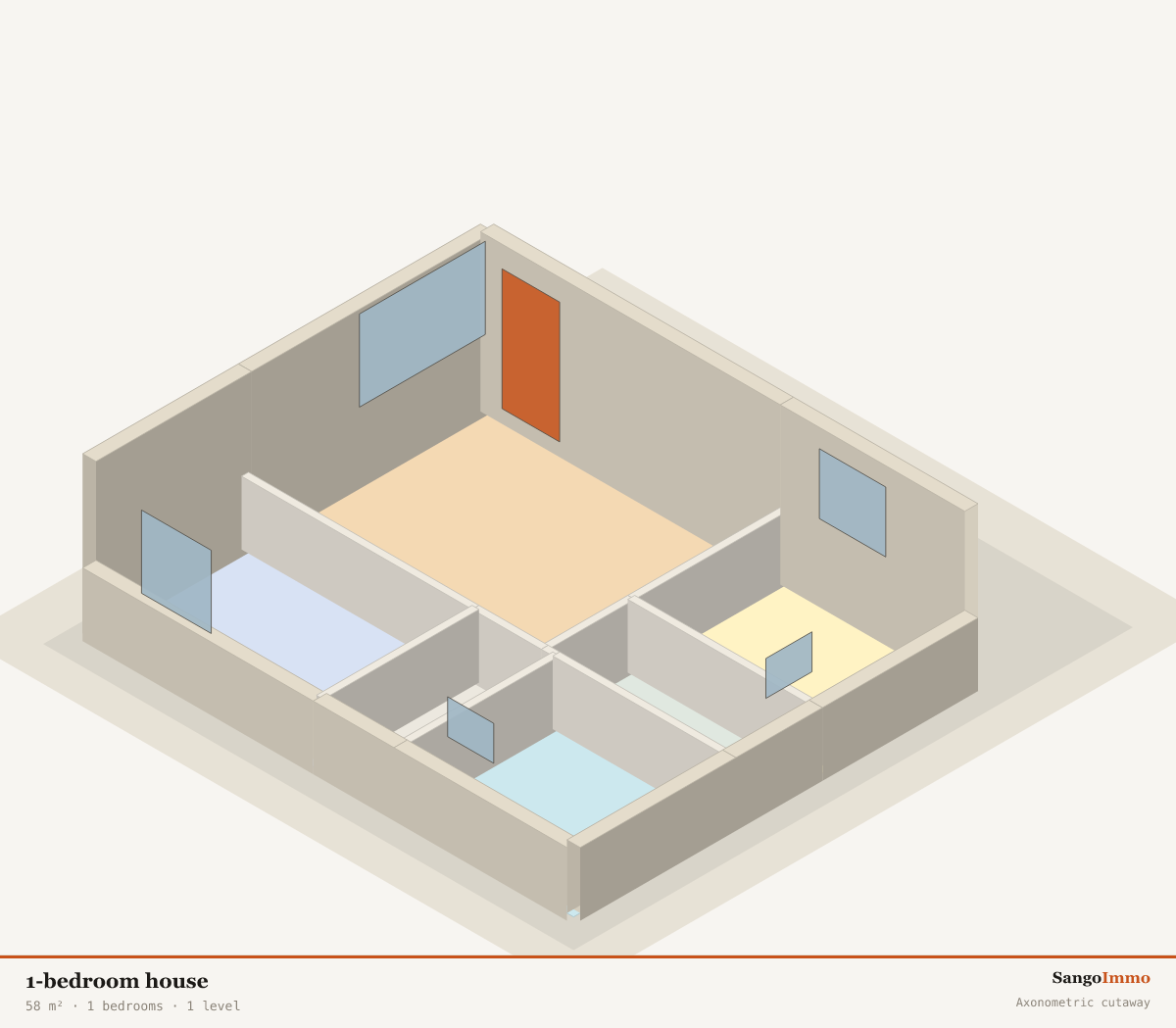

3D view of the 1-bedroom house: single-storey, 1 bedroom, 58 m² — render of the SangoImmo model, roof and façades as designed.
3D view of the 1-bedroom house, rendered from the same model as the plan above: what the app shows when you switch to 3D.

The drawing and the 3D view are two readings of one model. Open it and you can walk around the house, check the roof and the heights, then go back to the plan and move a wall: the 3D view and the quantities follow.

Room schedule for this plan

1-bedroom house — room schedule
RoomLevelDimensionsArea
Living room—5,20 × 4,20 m21,8 m²
Master bedroom—4,00 × 2,70 m10,8 m²
Terrace (outdoor)—5,20 × 2,00 m10,4 m²
Kitchen—3,20 × 2,70 m8,6 m²
Bathroom—3,00 × 2,70 m8,1 m²
Laundry—3,20 × 1,50 m4,8 m²
Hallway—1,40 × 2,70 m3,8 m²
Total living area58 m²
Outdoor (terrace, yard, garden)10,4 m²

Areas are measured inside the walls from the drawing above, room by room. The 11 doors and windows are positioned on the plan and are what the takeoff deducts from the masonry.

Dimensions and footprint

The building measures 8,40 m by 6,90 m, so it needs a plot of at least 13 × 11 m to keep a 2 m margin on every side — check the setbacks that apply where you build. Perimeter walls are drawn 20 cm thick, internal partitions 10 cm. Ceiling height is 2,70 m.

The quantities of this plan

These are the quantities the SangoImmo engine takes off this exact model — openings deducted from the walls, the roof counted at its real sloping area (78,16 m² of covering). They are the same wherever the house is built.

1-bedroom house — main quantities
Work itemQuantity
Foundations
Strip footing (reinforced)3,06 m³
Foundation block 20cm24,48 m²
Bottom tie beam (RC)30,6 lm
Compacted laterite fill8,69 m³
Walls and structure
Hollow block 20 cm923 units
Hollow block 15 cm598 units
Cement render (both faces)230,98 m²
Cement CEM II (50 kg bag)72 bags
River sand3,04 m³
Crushed gravel 5/152,43 m³
Floors
Concrete slab 12 cm + mesh57,96 m²
Smooth cement screed57,96 m²
Roof
Treated structural timber3,23 m³
Galvanized corrugated sheet 30/10084,41 m²
Aluminum half-round gutter33,8 lm

Structural shell only: foundations, walls, floors and roof. Joinery, plumbing, electrics and finishes are counted in the app, where the full takeoff runs to every line. For a single wall, slab or roof, use the quantity calculators.

What does this plan cost to build?

It depends on where you build. A bag of cement, a day of labour and the taxes on both do not cost the same from one region to the next, and no single figure printed here would be true for you. What does not change is the list above: the quantities.

So open this plan in the app and price it yourself: enter your own local prices, your labour rates and your taxes, and the quote is built from these quantities — yours, for your region, and recalculated every time you change the plan.

Open this plan in the app — free

Frequently asked questions

What floor area does a 1-bedroom house need?
This 1-bedroom plan uses 58 m² of living area (single-storey) on a 8,40 by 6,90 m footprint, with 1 bath/shower room. It is one worked example, not a minimum: open it and resize the rooms to see what your own programme needs.
What plot size do I need for this plan?
The building itself is 8,40 × 6,90 m, so plan for a plot of at least 13 × 11 m to keep a 2 m margin on all sides — more if you want a yard or parking, and subject to the setbacks that apply where you build.
How many blocks does this 58 m² house need?
1 521 blocks for the walls of this model, doors and windows deducted, and 78,16 m² of roof covering. The count comes from the plan, so it changes with your own wall lengths and openings.
How much does this plan cost to build?
It depends on where you build: materials, labour and taxes differ from one region to the next, so no price is published here. Open the plan in the app, enter your own local prices, and the quote is computed from the quantities of this model.
Can I see this house in 3D and edit it?
Yes. The plan is a SangoImmo model: open it in the free app, switch to the 3D view to walk around the house, then move walls, resize rooms or add a level. The 3D view and the quantities recalculate as you draw.
